Examples#

Live example

Basic Example#

import flet as ft


def main(page: ft.Page):
    rail = ft.NavigationRail(
        selected_index=0,
        label_type=ft.NavigationRailLabelType.ALL,
        min_width=100,
        min_extended_width=400,
        group_alignment=-0.9,
        on_change=lambda e: print("Selected destination:", e.control.selected_index),
        leading=ft.FloatingActionButton(
            icon=ft.Icons.CREATE,
            content="Add",
            on_click=lambda e: print("FAB clicked!"),
        ),
        destinations=[
            ft.NavigationRailDestination(
                icon=ft.Icons.FAVORITE_BORDER,
                selected_icon=ft.Icons.FAVORITE,
                label="First",
            ),
            ft.NavigationRailDestination(
                icon=ft.Icon(ft.Icons.BOOKMARK_BORDER),
                selected_icon=ft.Icon(ft.Icons.BOOKMARK),
                label="Second",
            ),
            ft.NavigationRailDestination(
                icon=ft.Icons.SETTINGS_OUTLINED,
                selected_icon=ft.Icon(ft.Icons.SETTINGS),
                label=ft.Text("Settings"),
            ),
        ],
    )

    page.add(
        ft.Row(
            expand=True,
            controls=[
                rail,
                ft.VerticalDivider(width=1),
                ft.Column(
                    alignment=ft.MainAxisAlignment.START,
                    expand=True,
                    controls=[ft.Text("Body!")],
                ),
            ],
        )
    )


ft.run(main)

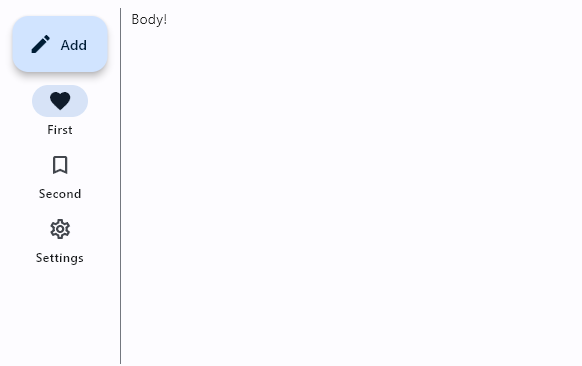

basic

NavigationRail #

Bases: ConstrainedControl

A material widget that is meant to be displayed at the left or right of an app to navigate between a small number of views, typically between three and five.

animate_offset #

animate_offset: AnimationValue | None = None

Enables implicit animation of the offset property.

More information here.

animate_opacity #

animate_opacity: AnimationValue | None = None

Enables implicit animation of the opacity property.

More information here.

animate_position #

animate_position: AnimationValue | None = None

Enables implicit animation of the positioning properties (left, right, top and bottom).

More information here.

animate_rotation #

animate_rotation: AnimationValue | None = None

Enables implicit animation of the rotate property.

More information here.

animate_scale #

animate_scale: AnimationValue | None = None

Enables implicit animation of the scale property.

More information here.

animate_size #

animate_size: AnimationValue | None = None

TBD

aspect_ratio #

aspect_ratio: Number | None = None

TBD

badge #

badge: BadgeValue | None = None

A badge to show on top of this control.

bgcolor #

bgcolor: ColorValue | None = None

Sets the color of the Container that holds all of the NavigationRail's contents.

bottom #

bottom: Number | None = None

The distance that the child's bottom edge is inset from the bottom of the stack.

Note

Effective only if this control is a descendant of one of the following: Stack control, Page.overlay list.

col #

col: ResponsiveNumber = 12

If a parent of this control is a ResponsiveRow, this property is used to determine how many virtual columns of a screen this control will span.

Can be a number or a dictionary configured to have a different value for specific breakpoints, for example col={"sm": 6}.

This control spans the 12 virtual columns by default.

Dimensions
Breakpoint Dimension
xs <576px
sm ≥576px
md ≥768px
lg ≥992px
xl ≥1200px
xxl ≥1400px

data #

data: Any = skip_field()

Arbitrary data of any type.

destinations #

destinations: list[NavigationRailDestination] = field(
    default_factory=list
)

Defines the appearance of the button items that are arrayed within the navigation rail.

The value must be a list of two or more NavigationRailDestination instances.

disabled #

disabled: bool = False

Every control has disabled property which is False by default - control and all its children are enabled.

Note

The value of this property will be propagated down to all children controls recursively.

Example

For example, if you have a form with multiple entry controls you can disable them all together by disabling container:

ft.Column(
    disabled = True,
    controls=[
        ft.TextField(),
        ft.TextField()
    ]
)

elevation #

elevation: Number | None = None

Controls the size of the shadow below the NavigationRail.

Defaults to 0.0.

expand #

expand: bool | int | None = None

Specifies whether/how this control should expand to fill available space in its parent layout.

More information here.

Note

Has effect only if the direct parent of this control is one of the following controls, or their subclasses: Column, Row, View, Page.

expand_loose #

expand_loose: bool = False

Allows the control to expand along the main axis if space is available, but does not require it to fill all available space.

More information here.

Note

If expand_loose is True, it will have effect only if:

  • expand is not None and
  • the direct parent of this control is one of the following controls, or their subclasses: Column, Row, View, Page.

extended #

extended: bool = False

Indicates that the NavigationRail should be in the extended state.

The extended state has a wider rail container, and the labels are positioned next to the icons. min_extended_width can be used to set the minimum width of the rail when it is in this state.

The rail will implicitly animate between the extended and normal state.

If the rail is going to be in the extended state, then the label_type must be set to none.

group_alignment #

group_alignment: Number | None = None

The vertical alignment for the group of destinations within the rail.

The NavigationRailDestinations are grouped together with the trailing widget, between the leading widget and the bottom of the rail.

The value must be between -1.0 and 1.0.

If group_alignment is -1.0, then the items are aligned to the top. If group_alignment is 0.0, then the items are aligned to the center. If group_alignment is 1.0, then the items are aligned to the bottom.

Defaults to -1.0.

height #

height: Number | None = None

Imposed Control height in virtual pixels.

indicator_color #

indicator_color: ColorValue | None = None

The color of the navigation rail's indicator.

indicator_shape #

indicator_shape: OutlinedBorder | None = None

The shape of the navigation rail's indicator.

Defaults to StadiumBorder().

key #

key: (
    str | int | float | bool | ValueKey | ScrollKey | None
) = None

label_type #

label_type: NavigationRailLabelType | None = None

Defines the layout and behavior of the labels for the default, unextended navigation rail.

When a navigation rail is extended, the labels are always shown.

Defaults to None - no labels are shown.

leading #

leading: Control | None = None

An optional leading control in the rail that is placed above the destinations.

Its location is not affected by group_alignment.

Typically a FloatingActionButton, but may also be a non-button, such as a logo.

left #

left: Number | None = None

The distance that the child's left edge is inset from the left of the stack.

Note

Effective only if this control is a descendant of one of the following: Stack control, Page.overlay list.

min_extended_width #

min_extended_width: Number | None = None

The final width when the animation is complete for setting extended to True.

Defaults to 256.

min_width #

min_width: Number | None = None

The smallest possible width for the rail regardless of the destination's icon or label size.

Defaults to 72.

This value also defines the min width and min height of the destinations.

To make a compact rail, set this to 56 and use label_type='none'.

offset #

offset: OffsetValue | None = None

Applies a translation transformation before painting the control.

The translation is expressed as an Offset scaled to the control's size. So, Offset(x=0.25, y=0), for example, will result in a horizontal translation of one quarter the width of this control.

Example

The following example displays container at 0, 0 top left corner of a stack as transform applies -1 * 100, -1 * 100 (offset * control's size) horizontal and vertical translations to the control:

import flet as ft

def main(page: ft.Page):
    page.add(
        ft.Stack(
            width=1000,
            height=1000,
            controls=[
                ft.Container(
                    bgcolor="red",
                    width=100,
                    height=100,
                    left=100,
                    top=100,
                    offset=ft.Offset(-1, -1),
                )
            ],
        )
    )

ft.run(main)

on_animation_end #

on_animation_end: (
    ControlEventHandler[ConstrainedControl] | None
) = None

Called when animation completes.

Can be used to chain multiple animations.

The data property of the event handler argument contains the name of the animation.

More information here.

on_change #

on_change: ControlEventHandler[NavigationRail] | None = None

Called when selected destination changed.

opacity #

opacity: Number = 1.0

Defines the transparency of the control.

Value ranges from 0.0 (completely transparent) to 1.0 (completely opaque without any transparency).

page #

page: Page | PageView | None

The page (of type Page or PageView) to which this control belongs to.

parent #

parent: BaseControl | None

The direct ancestor(parent) of this control.

It defaults to None and will only have a value when this control is mounted (added to the page tree).

The Page control (which is the root of the tree) is an exception - it always has parent=None.

right #

right: Number | None = None

The distance that the child's right edge is inset from the right of the stack.

Note

Effective only if this control is a descendant of one of the following: Stack control, Page.overlay list.

rotate #

rotate: RotateValue | None = None

Transforms this control using a rotation around its center.

The value of rotate property could be one of the following types:

  • number - a rotation in clockwise radians. Full circle 360° is math.pi * 2 radians, 90° is pi / 2, 45° is pi / 4, etc.
  • Rotate - allows to specify rotation angle as well as alignment - the location of rotation center.
Example

For example:

ft.Image(
    src="https://picsum.photos/100/100",
    width=100,
    height=100,
    border_radius=5,
    rotate=Rotate(angle=0.25 * pi, alignment=ft.Alignment.CENTER_LEFT)
)

rtl #

rtl: bool = False

Whether the text direction of the control should be right-to-left (RTL).

scale #

scale: ScaleValue | None = None

Scales this control along the 2D plane. Default scale factor is 1.0, meaning no-scale.

Setting this property to 0.5, for example, makes this control twice smaller, while 2.0 makes it twice larger.

Different scale multipliers can be specified for x and y axis, by setting Control.scale property to an instance of Scale class. Either scale or scale_x and scale_y could be specified, but not all of them.

Example
ft.Image(
    src="https://picsum.photos/100/100",
    width=100,
    height=100,
    border_radius=5,
    scale=ft.Scale(scale_x=2, scale_y=0.5)
)

selected_index #

selected_index: int | None = None

The index into destinations for the current selected NavigationRailDestination or None if no destination is selected.

selected_label_text_style #

selected_label_text_style: TextStyle | None = None

The TextStyle of a destination's label when it is selected.

When a destination is not selected, unselected_label_text_style will instead be used.

tooltip #

tooltip: TooltipValue | None = None

The tooltip ot show when this control is hovered over.

top #

top: Number | None = None

The distance that the child's top edge is inset from the top of the stack.

Note

Effective only if this control is a descendant of one of the following: Stack control, Page.overlay list.

trailing #

trailing: Control | None = None

An optional trailing control in the rail that is placed below the destinations.

Its location is affected by group_alignment.

This is commonly a list of additional options or destinations that is usually only rendered when extended=True.

unselected_label_text_style #

unselected_label_text_style: TextStyle | None = None

The TextStyle of a destination's label when it is not selected.

When a destination is selected, selected_label_text_style will instead be used.

use_indicator #

use_indicator: bool | None = None

Whether to add a rounded navigation indicator behind the selected destination's icon.

The indicator's shape will be circular if label_type is NavigationRailLabelType.NONE, or a StadiumBorder if label_type is NavigationRailLabelType.ALL or NavigationRailLabelType.SELECTED.

If None, defaults to NavigationRailTheme.use_indicator. If that is also None, defaults to Theme.use_material3.

visible #

visible: bool = True

Every control has visible property which is True by default - control is rendered on the page. Setting visible to False completely prevents control (and all its children if any) from rendering on a page canvas. Hidden controls cannot be focused or selected with a keyboard or mouse and they do not emit any events.

width #

width: Number | None = None

Imposed Control width in virtual pixels.

before_event #

before_event(e: ControlEvent)

before_update #

before_update()

clean #

clean() -> None

did_mount #

did_mount()

init #

init()

is_isolated #

is_isolated()

update #

update() -> None

will_unmount #

will_unmount()
